For Tapes & Bands
6 ranges; 200-2000 g up to 5-50 Kg

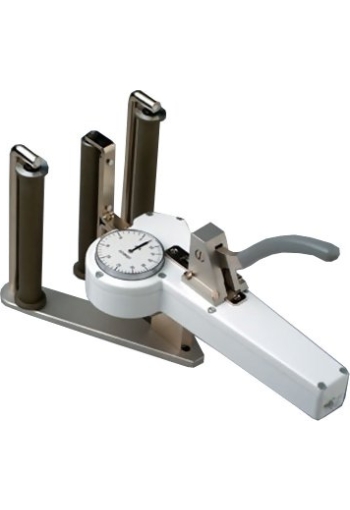

DXR Tape & Band Tension Meter |
The CHECK-LINE DXR Tension meter is designed for measuring all of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc. Dual-flanged rollers for narrow webs less then 4 inches (100 mm) width is optionally available. Note: This model does not include a filament guide and material thickness compensator |
 Features
 Single-flanged outer guide rollers with 50 mm or 100 mm width (dual-flanged rollers optional) | | Roller shifting mechanism ensures easy acquisition of the running material |
| | The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment |
|
Tension Ranges
| Model | Range | Measuring Head
Width mm | Roller Widths mm | | DXR-2000 | 200-2000 | 125 | 50, 100 | | DXR-5000 | 400-5000 | 125 | 50, 100 | | DXRL-10K | 2.5-10 Kg | 125 | 50, 100 | | DXRL-20K | 5-20 Kg | 200 | 50, 100 | | DXRL-30K | 5-30 Kg | 200 | 50, 100 | | DXRL-50K | 5-50 Kg | 200 | 50, 100 | |
Special calibration using customer supplied samples is recommended, if process material differs significantly from the Check-Line calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

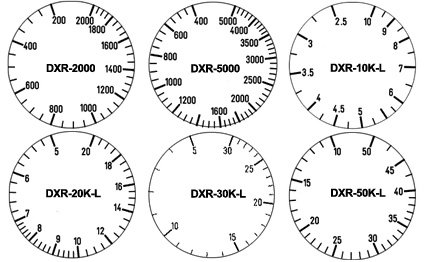

DXR Dial Faces
 | |
| |
Related Products
|
Roller Guide
Available Rollers for Hand-Held Tension Meters |  |
| | | ___________________________________________ |
|
TX2
Tape Tension Meter with rollers point away from operator |  |
| | | ___________________________________________ |
|
RX2/BX2
Narrow Web/Tape Tension Meter |  |
| |
Guide Rollers
| Roller Widh | Line Speed
 ...m/min | Roller Material | | 50 mm | 1000 | Hardcoated aluminium | | 100 mm | 1000 | Hardcoated aluminium |
Options | Lever (L)
A heavy duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 Kg or higher. |  | | Memory Pointer (M)
Designed to retain the peak value as tensions fluctuate. Manually reset by using the knob located in the center of the dial. |  | | |
|
Complete Kit
| | | The DXR Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case. |
 |
Specifications
| Accuracy | ± 1% of full scale or
± 1 graduation mark on scale | | Diameter of Scale | 41 mm | | Maximum Speed | 1000 m/min | | Roller Material | Hardcoated aluminium | | Housing Material | Die-cast aluminum | | Temperature range | 50 - 113°F (10 - 45°C) | | Air humidity | 85 % RH, max. | | Housing dimensions(L x W x H) | 7.5 x 3.3 x 1.8 in(188 x 85 x 45 mm) | | Weight, net (gross) | 2.2 lbs (4.5 lbs) |
|
|
