Ultra-Reliable, General Purpose
10 ranges, 5-50 g up to 5-50 kg
Handy Rugged Metal Housing

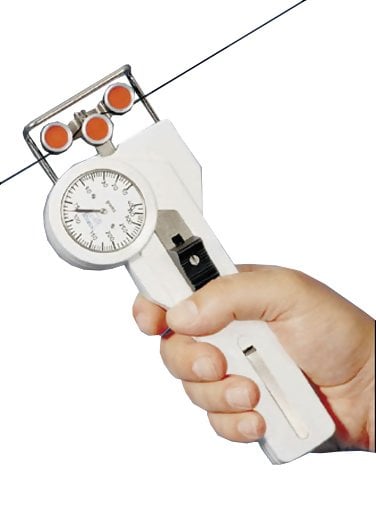

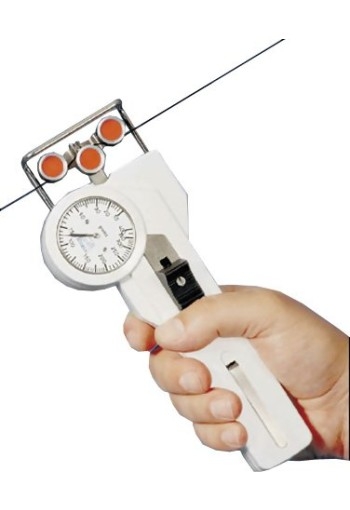

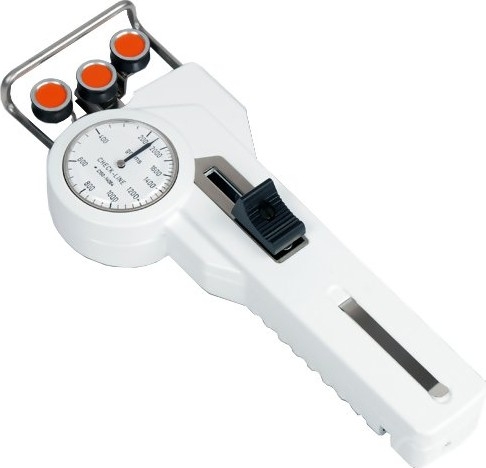

DX2 Tension Meter |
A precise jeweled movement, choice of ball bearing mounted rollers and rugged cast aluminum housing makes the DX2 ideal for the toughest production floor application.
Built-in mounting holes permit fixed installation for continuous in-line use.  Built-in material thickness compensator maximizes accuracy when using filaments of different diameters. (Standard on model DX2-SP and higher ranges)
|
 Features

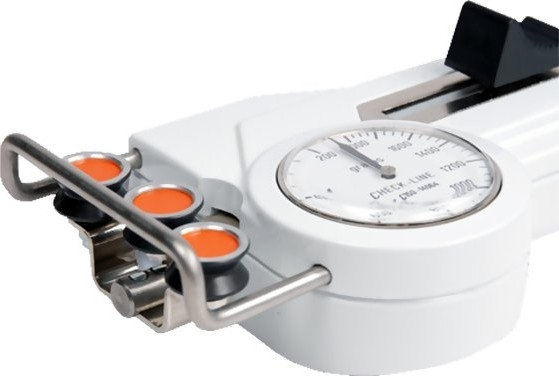

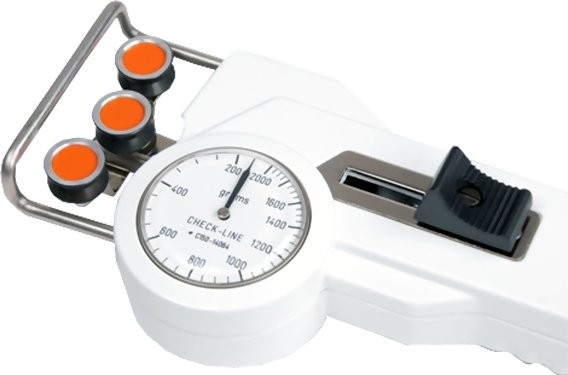

 Thumb-operated, roller shifting mechanism and exclusive snare-guide automatically guides the moving filament into the V-grooves eliminating breaks and snags. | | Front filament loading permits the operator to observe running material, rollers and dial face at all times. | | DX2's are individually calibrated for highest accuracy. |
| | NIST calibration available | | DX2's hard-coated aluminum, V-grooved rollers are rated for speeds up to 2000 m/min or, optionally, up to 5000 m/min. | Finger Support: We recommend mounting a finger support for higher tension ranges (included)
 |
|

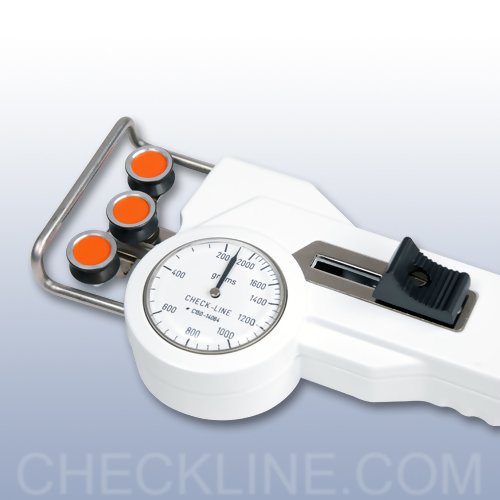

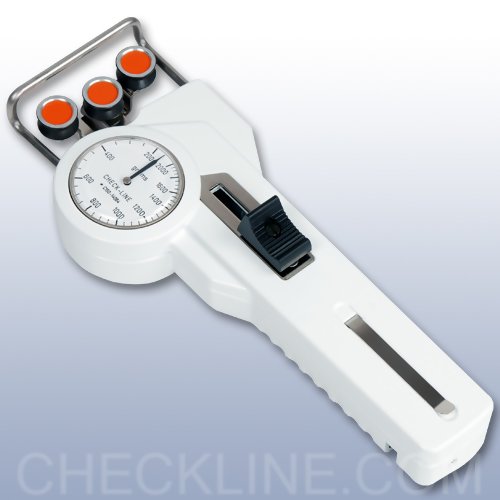

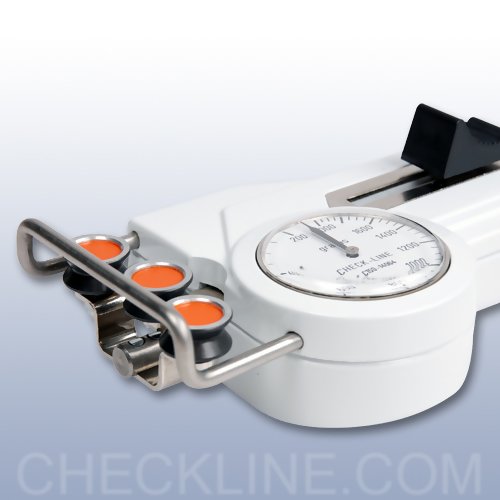

Photo Gallery - click any photo to enlarge
| Model DX2L-2K with lever Code L for easy use at high ranges, measuring head width 216 mm |
Tension Ranges
| Model | Range | Outer Roller Spacing c:c | Calibration Material | Thickness Compensator | | DX2-3 | 3-30 g | 38 mm | PA: 0.12 mm Ø | NA | | DX2-5 | 5-50 g | 38 mm | PA: 0.12 mm Ø | NA | | DX2-12 | 20-120 g | 38 mm | PA: 0.12 mm Ø | NA | | DX2-20 | 20-200 g | 38 mm | PA: 0.12 mm Ø | NA | | DX2-40 | 20-400 g | 38 mm | PA: 0.20 mm Ø | NA | | DX2-SP | 20-1000 g | 38 mm | PA: 0.30 mm Ø | Standard | | DX2-EX | 100-1000 g | 38 mm | PA: 0.30 mm Ø | Standard | | DX2-200 | 200-2000 g | 100 mm | PA: 0.50 mm Ø | Standard | | DX2-500 | 400-5000 g | 100 mm | PA: 0.80 mm Ø | Standard | | DX2-1K | 2-10 Kg | 100 mm | PA: 1.00 mm Ø | Standard | | DX2L-2K | 5-20 Kg | 150 mm | PA: 1.50 mm Ø | Standard | | DX2L-3K | 5-30 Kg | 250 mm | | Standard | | DX2L-5K | 5-50 Kg | 250 mm | | Standard | |
Calibration to customized material:
If process material differs significantly from the standard calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 15 ft. should be supplied. Click Here For Sample Dial Faces
 | |
| |
Related Products
|
DX2S
Stationary Tension Meter |  |
Fixed mount design for continuous measurement Option adjustable "max" & "min" tension detector contacts can provide a low voltage signal when tension exceed user-set limits | | | ___________________________________________ |
|
Roller Guide
Available Rollers for Hand-Held Tension Meters |  |
| |
Options
Air Damping (A)
An adjustable, precision air dashpot provides steady tension reading as tension fluctuate. |  | | Lever (L)
A heavy duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 Kg or higher. |  | | Memory Pointer (M)
Designed to retain the peak value as tensions fluctuate. Manually reset by using the knob located in the center of the dial. |  | | |
|
Complete Kit

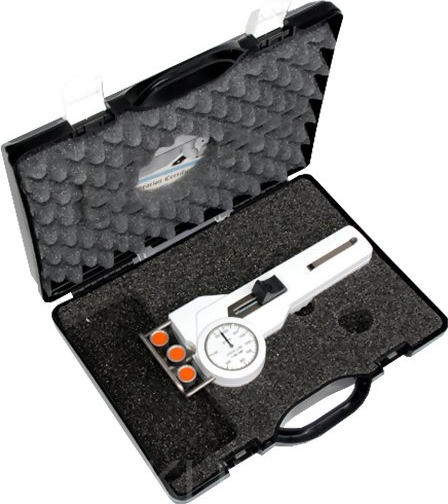

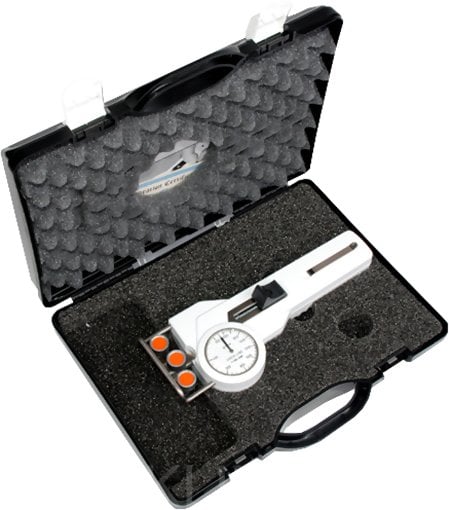

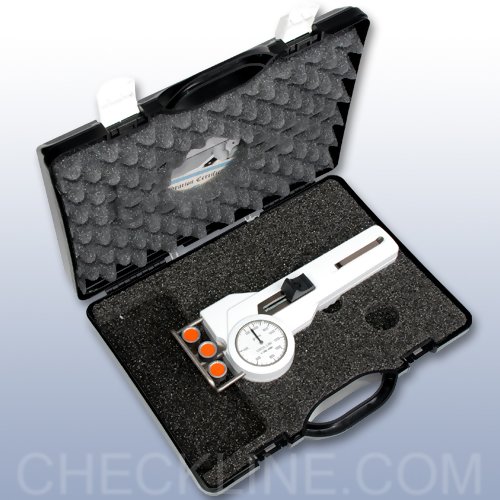

| | | The DX2 Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case. |
 |
Specifications
| Accuracy | ± 1% of full scale or
± 1 graduation mark on scale | | Diameter of Scale | 41 mm | | Maximum Speed | 2000 m/min (standard)
3500 m/min (K)
5000 m/min (HS) | | Outer roller distance, c:c | DX2-5 to DX2-EX: 38 mm
DX2-200 to DX2-1k: 100 mm
DX2-2K: 150 mm
DX2-3K to DX2-5K: 250 mm | | Roller Material | Hard-coated aluminum (standard)
Hardened steel (ST)
Chromed Steel (w)
Ceramic (CE)
Plastic (PL) | | Housing Material | Die-cast aluminum | | Dimensions | 225 x 90 x 44 mm
(8.6" x 3.5" x 1.7") |
