DT-315AEB Digital Stroboscope

Price:$675.00 & $750.00
Type: Digital Stroboscope with External Battery
Range: 40 - 35,000 RPM/FPM
Power: External Battery

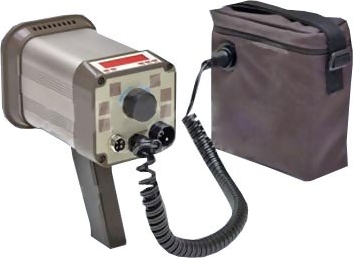

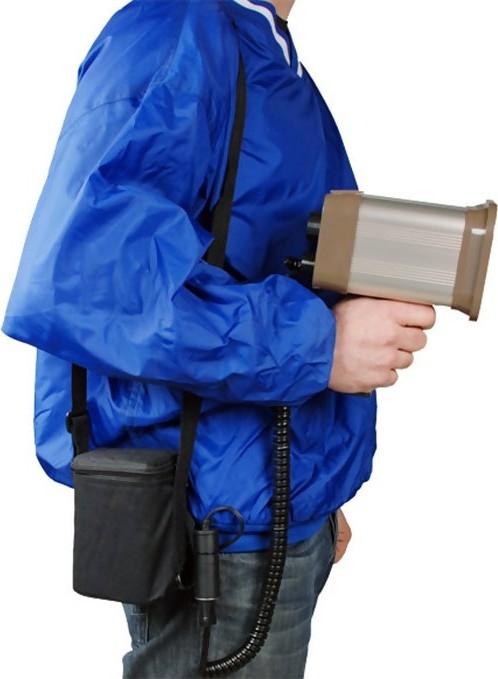

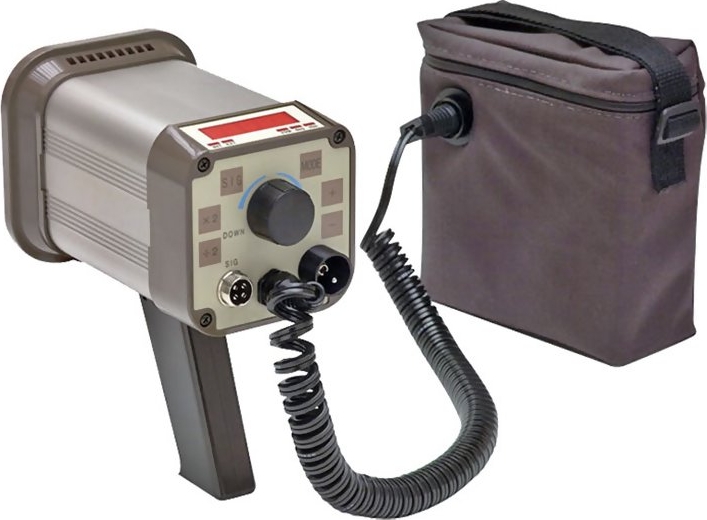

DT-315AEB Digital Stroboscope with External Battery

Portable, highly stable and accurate, industrial-quality tools for non-contact RPM measurement, inspection and observation of moving parts by "freezing" or "slowing down" the action.

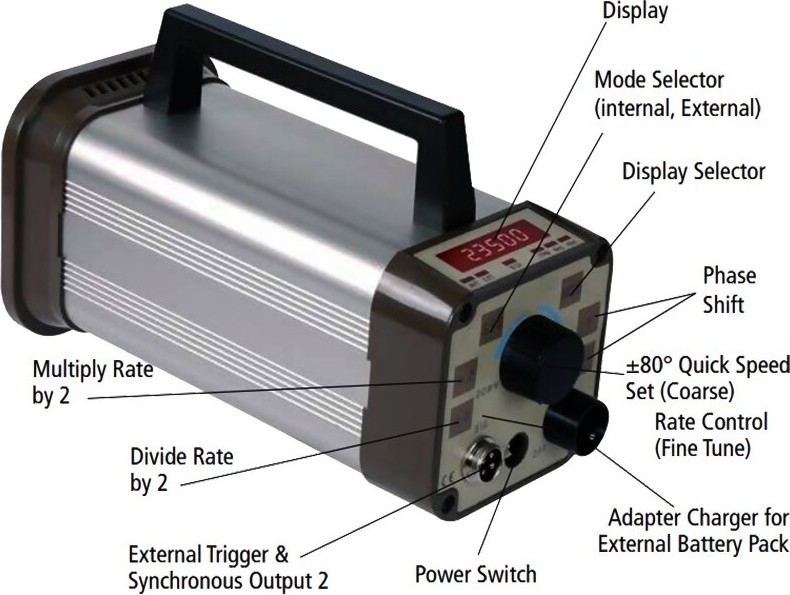

Features
Highest accuracy and most stable flash rate
Accepts external trigger input and provides synchronizing pulse output
Easy-to-read LED display
Phase shift for best view and flash photography

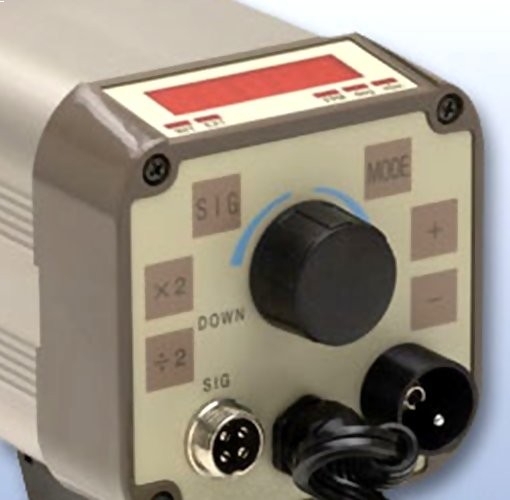

Easy-to-operate controls
Flash rate control

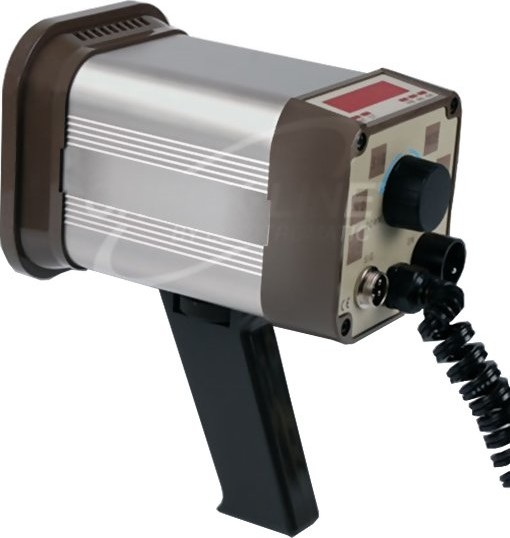

Detachable pistol-grip handle
Instant double and half-rate flash selection for error-free reading
Provides 12 V DC power for external sensors
Related Products
SAS-DT300
Articulating Stroboscope Swing Arm
41" when fully extended
Heavy duty construction with internal springs



SG-300
Protective Rubber Caps for 300 Series Stroboscopes
Molded rubber caps to provide protection in harsh industrial environments



Specifications
Flash Range:
40-35,000 FPM
Accuracy:
Internal Mode: ±0.01% of reading
External Mode: ±0.01% or ± 1 digit
Drift:
±0.01% per degree C
Update Time:
Internal Mode: 0.2 seconds
External Mode: ±0.01% or ± 1 digit
Input Signal:
LO level: 0-0.4 VDC
HI level: 2.5 - 12 VDC -- or open collector (npn)
pulse width 50us min
Output Signal:
Synchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance
Display & Rate:
Divide or multiply by 2, selectable
Operating Temp:
32-104° (0-40°C)
Display:
5 digits, 10 mm high, red LED

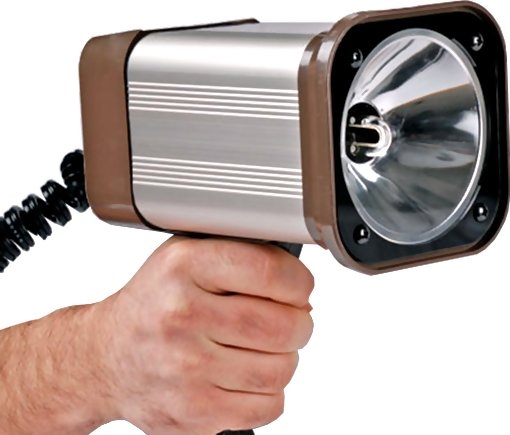

Flashtube:
Xenon, 10 W maximum
Flash Duration:
10-30 µs
Sensor Power
Supply:
12 VDC ± 0.5V (50ma)
Power Requirements:
115 V AC or 230 V AC Adapter or one (1) hour, internal,
rechargeable 12 V battery or external 12 V DC
Phase Shift:
0 - 359° with 1° resolution or 0 - 333 ms from 200 - 3,000 FPM
Input Impedance:
10,000 ohms
Battery Life:
3 hours at high flash rate
Full Charge Time:
16 hours
Weight:
4.4 lbs. (2 kg)
Dimensions:
4.7 x 4.7 x7.2" (120 x 120 x 183mm)
Download
news
PDF Data Sheet Click to download

Buy Now



Please select the items you would like to purchase then click "Add to Cart"
Products:

DT-315AEB - Model





Accessories:
Accessories for Stroboscopes:








  • Manufactured by: Shimpo
