CAP-TT01 Cap Torque Tester With Data Output

Cap Torque Tester with Data Output
3 Ranges up to 100 lbf-in
Made in the USA
Price:  $1,245.00
Series TT01 Cap Torque Tester

3 Ranges up to 100 lb-in
Sample Diameters up to 7.5" (190 mm)

CAP-TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin (11.5 Nm). Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.

Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications.

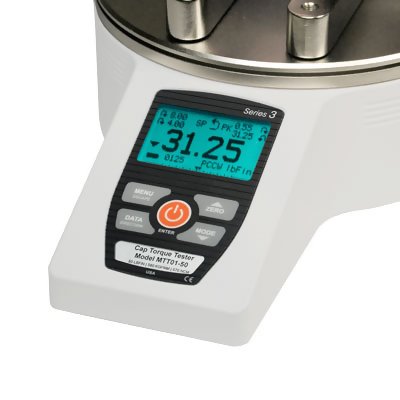

The CAP-TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

CAP-TT01 testers include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data stored in the CAP-TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.



Features of the CAP-TT01 Cap Torque Tester

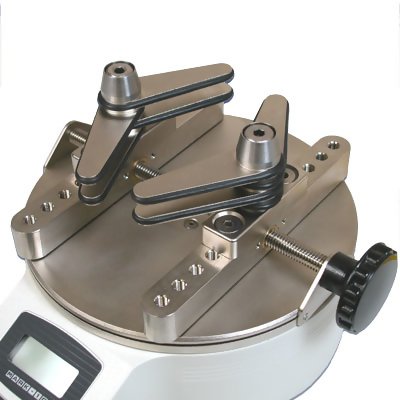

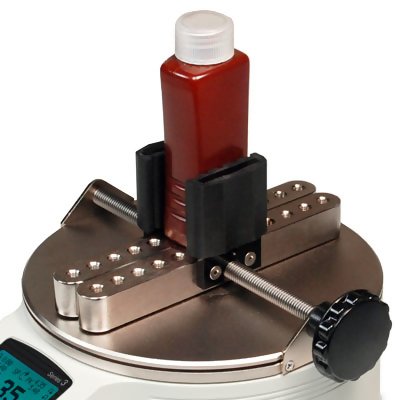

bluedot Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
bluedot Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
bluedot Password protection prevents unauthorized changes
bluedot High-speed 7,000 Hz sampling rate accurately captures peak torque values
bluedot 5 selectable units of measurement

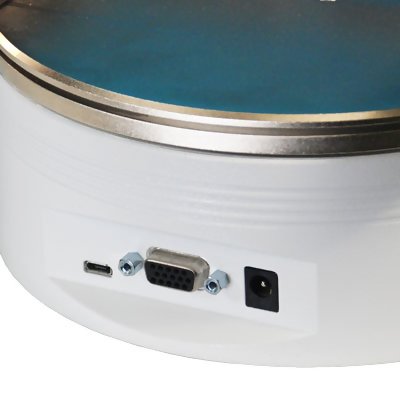

bluedot USB, RS-232, Mitutoyo, and analog outputs
bluedot 1,000-point data memory with statistics and outputs
bluedot Programmable set point indicators and outputs for pass/ fail determination
bluedot Configurable audio alarms and key tones
bluedot MESUR™ Lite data collection software included


Photo Gallery for the CAP-TT01 Cap Torque Tester - click any photo to enlarge

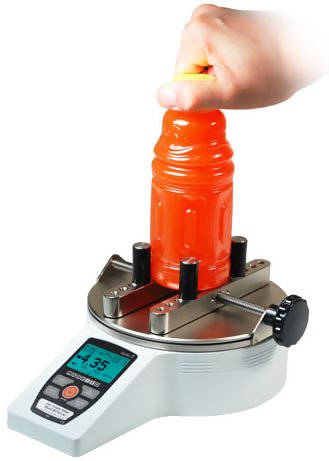

To operate the TT01 torque tester, position the posts according to the shape of the bottle, turn the knob until tight, and loosen the cap. The tester will show real time or peak torque for both the removal and application directions.


Torque Ranges (Capacity / Resolution)

Model ozFin lbFin lbFft Ncm Nm
CAP-TT01-12 192
0.1		 12
0.005		 1
0.0005		 135
0.1		 135
0.001
CAP-TT01-50 320
0.2		 50
0.02		 4
0.002		 570
0.5		 5.7
0.005
CAP-TT01-100 800
0.5		 100
0.05		 8
0.005		 1150
0.5		 11.5
0.005


Specifications of the CAP-TT01 Cap Torque Tester

Accuracy
±0.3% of full scale
Sampling rate
7,000 Hz
Power
AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units
ozFin, lbFin, lbFft, Nm, Ncm
Outputs
USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VCD, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Configurable Settings
Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload
150% of full scale (display shows "OVER" at 110% and above)
Weight
8.4 lb (3.8 kg)
Included items
Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
Warranty
3 years (see individual statement for further details)

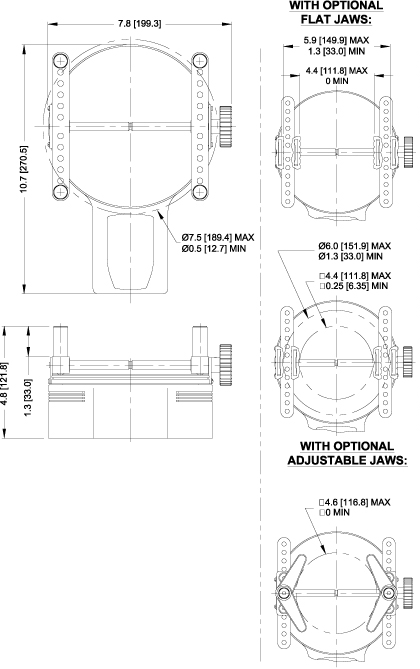

Dimensions

dimensions


Related Products for the CAP-TT01 Cap Torque Tester

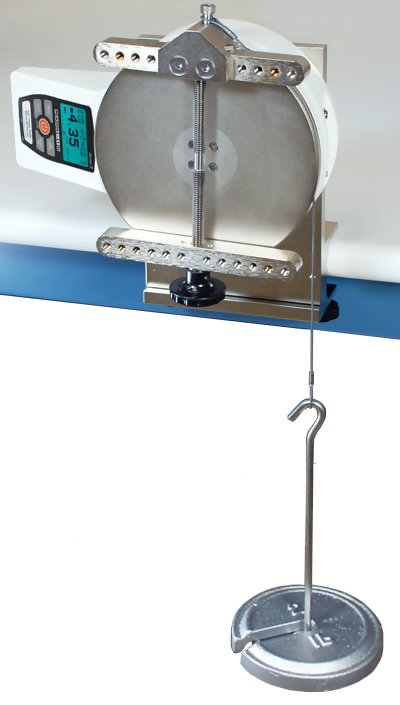

AC1036
Calibration Kit for CAP-TA
related

bluedot Calibration Kit
___________________________________________

MESURgauge
Mesurgauge Load & Travel Analysis Software
related

bluedot Windows 7 Compatible


Downloads for the CAP-TT01 Cap Torque Tester

manual Instruction Manual Click here to download PDF
