CAP-TA Cap Torque Tester

Price: $1,245.00
Cap Torque Tester with Data Output
3 Ranges up to 100 lbf-in
Units of measure: lbf-in, kgf-cm, and N-cm (selectable)
Made in the USA

CAP-TA Cap Torque Tester


The CAP-TA Cap Torque Testers is a simple, accurate, and economical solution for manual cap torque testing. Ideal for lab or production use for closure manufacturers, bottlers, food and beverage companies, and others. The cap torque tester captures peak readings for application and removal torques.

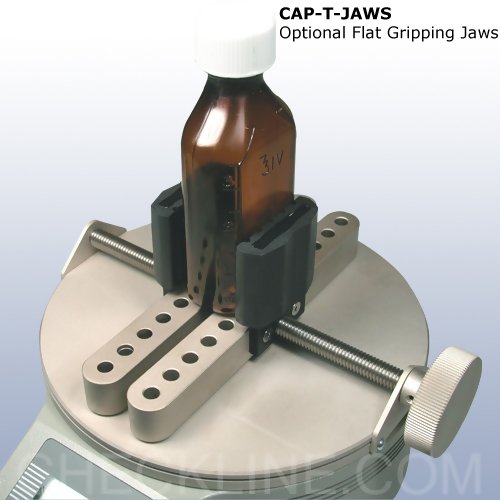

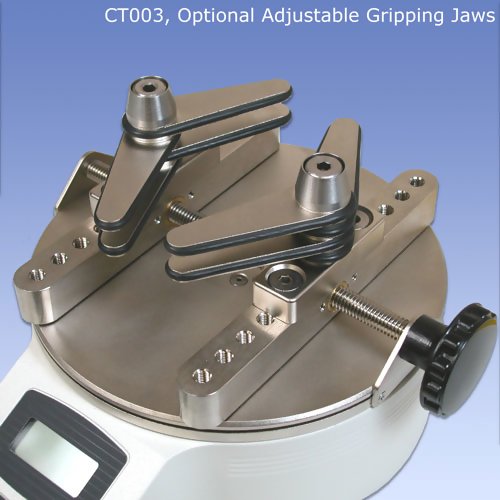

Data output via RS-232 and Mitutoyo enable reporting and analysis of test data via PC or other data collector. Adjustable posts effectively grip a broad range of container shapes and sizes, while a set of flat rubber-edged jaws are available for unique profiles. Innovative mechanical overload protection provides peace of mind.

The CAP-TA cap torque tester features an aluminum housing, rugged construction and close attention to engineering you'd expect.



line
reddot Features
line

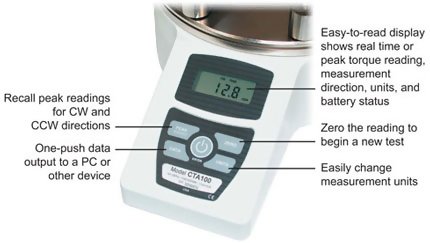

bluedot Measures in real time or peak torque modes
bluedot Data output via RS-232 and Mitutoyo
bluedot Selectable units of measurement
bluedot Accepts samples up to 7.5" (189.4 mm) dia.

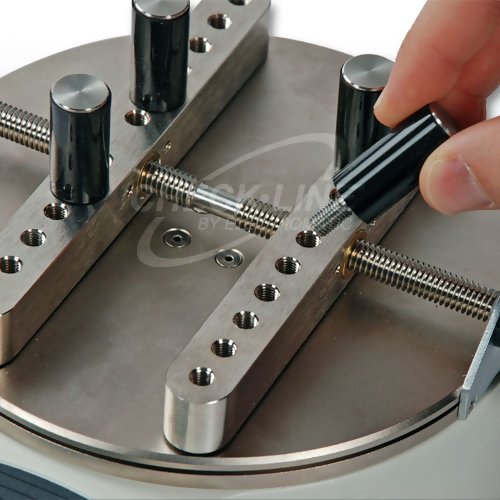

bluedot Movable threaded sample gripping posts
bluedot Captures peak readings for application and removal torques
bluedot 3 torque capacities available
bluedot Operates on a 9V battery or AC adapter
bluedot 3 Year Warranty

line

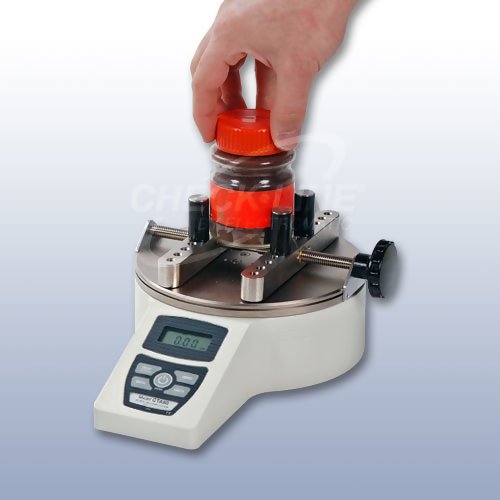

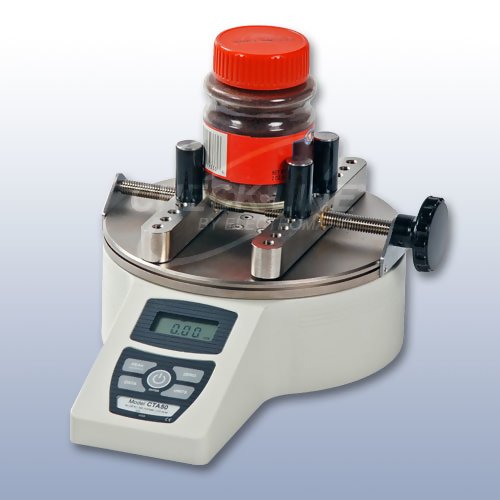

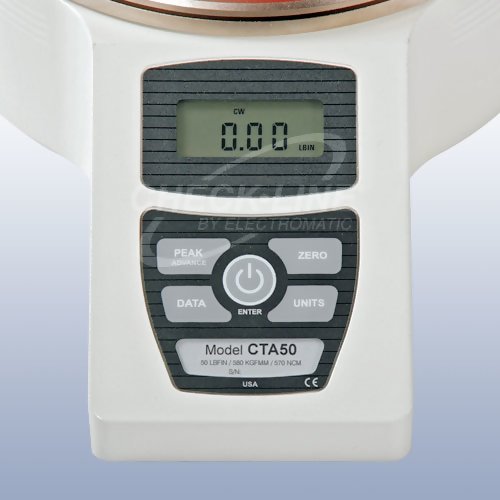

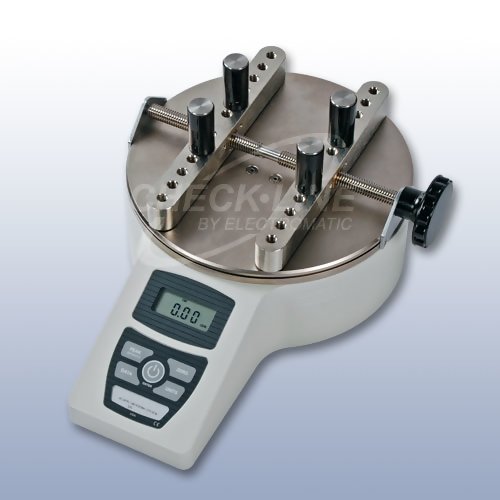

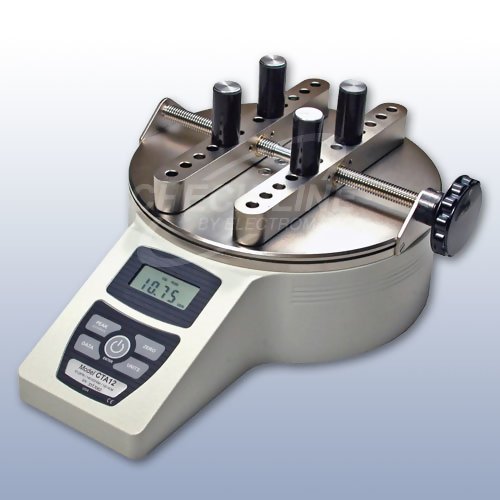

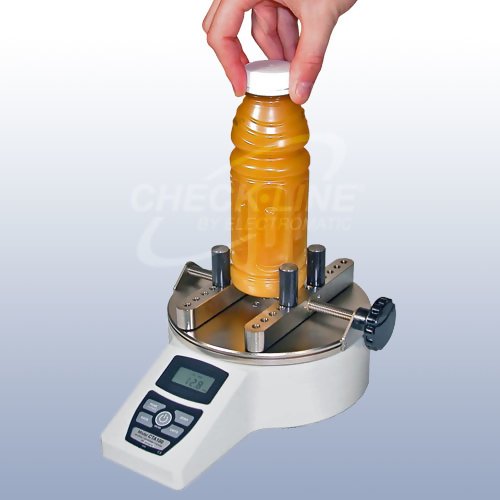

reddot Photo Gallery - click any photo to enlarge
line




line
reddot Force Ranges
line
ModelCapacityResolution
CAP-TA-1212 lb-in
140 kg-mm
135 N-cm		0.01 lb-in
0.1 kg-mm
0.1 N-cm
CAP-TA-5050 lb-in
580 kg-mm
570 N-cm		0.05 lb-in
0.5 kg-mm
0.5 N-cm
CAP-TA-100100 lb-in
1150 kg-mm
1150 N-cm		0.1 lb-in
1 kg-mm
1 N-cm

line

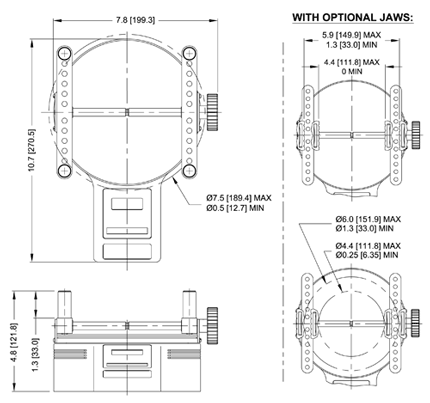

reddot Dimensions
line dimensions

line
reddot Related Products
line
DP-1VR
Mitutoyo SPC statistical processor/printer		related

bluedot Portable printer for use with force and torque gauges


___________________________________________

MESURgauge
Mesurgauge Load & Travel Analysis Software		related

bluedot Sends data from a force or torque gauge and travel display to a PC for further analysis




line
reddot Specifications
line
Accuracy±0.5% of full scale ±1 digit
Safe overload150% of capacity
Weight6.5 lbs (2.9 kg)
Warranty3 years

line
reddot Download
line

manual Instruction Manual  Click Here to Download

manual Data Sheet  Click here to download PDF
