Price: $1,495.00
Small Cap / Vial Torque Tester
Capacity: 100 Oz-in / 6.25 in-lb / 70 N-cm
Made in the USA
Small Cap & Vial Torque Tester |
Capacity: 100 Oz-in / 6.25 in-lb / 70 N-cm
Diameters: 0.2" up to 3.5" (5.1 - 89.0 mm)

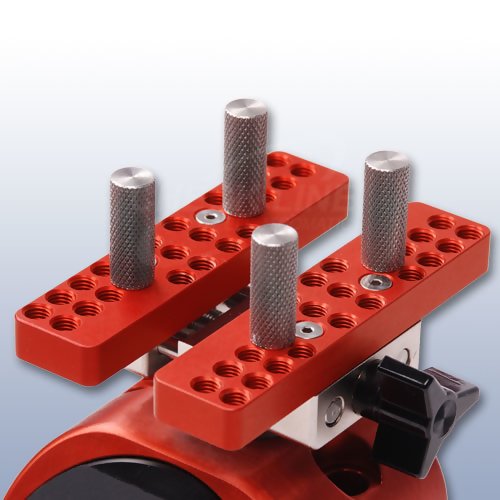

The CAP-QC is designed for measuring open and closure torque on small diameter bottles and vials used in the pharmaceutical and cosmetic industry. Compact, light weight aluminum housing with internal rechargeable battery makes for ease of transport so the CAP-QC can be used anywhere from the lab to the production line. Intuitive menu system allows the user to quickly select measuring units and operation mode. Peak mode holds max open or close torque on the display until it is reset for the next test. Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types from 0.2" up to 3.5" (5.1 - 89.0 mm) including vials, drams, lipstick & perfume packages as well as many other samples. |

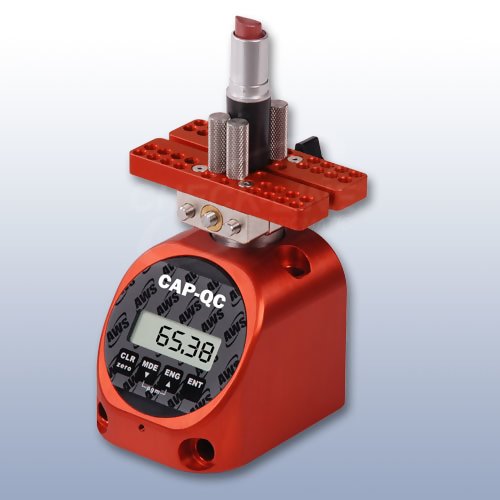

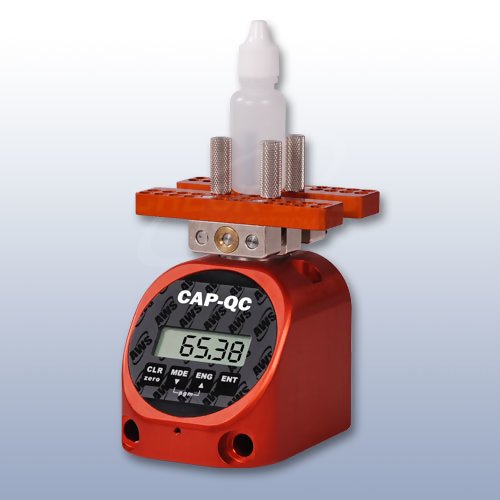

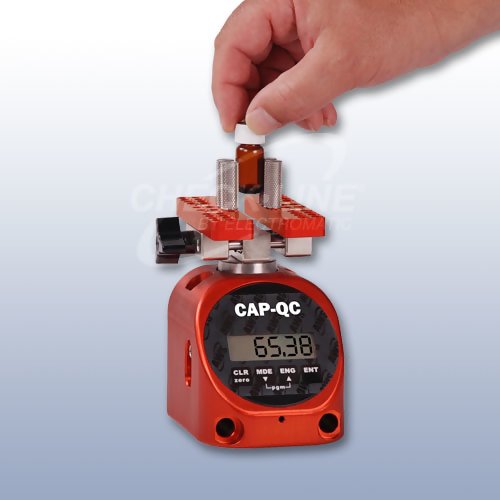

  Photo Gallery for the CAP-QC Small Cap & Vial Torque Tester - click any photo to enlarge Features of the CAP-QC Small Cap & Vial Torque Tester  Bidirectional accuracy of ±1% of indicated reading | Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm | 3 modes of operation: Track, Peak and 1st Peak | Rugged Aluminum construction |
| NiMH rechargeable batteries provide 8-10 hours of continuous use. Supplied with AC-Adapter/Charger | Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types | Includes NIST-Traceable Calibration Certificate |
|
Force Ranges of the CAP-QC Small Cap & Vial Torque Tester Model | Capacity | Resolution | | 100 Oz-in
6.25 in-lb
70 N-cm | | |
Specifications of the CAP-QC Small Cap & Vial Torque Tester
Calibrated Range | 10-100% Full Scale, bi-directional | Accuracy | ±1% of indicated (within calibrated range) | Resolution | 4 Active Digits | Overload Protection | 200% Full Scale bi-directional | Operating Modes | Track, Peak | Memory | data storage of up to 999 readings | Data Output | RS-232, Single Value, no continuous output | Alarm Limits | Panel Mounted LED for Visual Alarm Limits | Power | Internal NiMH battery, 9V Charger (included) | Weight | 3lbs | Operating Temp | 32 - 120 °F (0-50 °C) | Warranty | 1 Year | Calibration Certificate | Includes NIST Traceable calibration certificate with data |
Buy Now
|
|
