A2108 Handheld Tachometer with Analog Output

Price: $249.00
Advent Optical/Contact Multimeter Probes

Tachometer with Analog Output

The A2108 Non-Contact Tachometer converts RPM into an analog (voltage) output signal allowing you to use any Digital Multimeter, Data Acquisition System or Voltage Recorder as an RPM display. Optional Contact adapter allows you to measure contact RPM or surface speed.

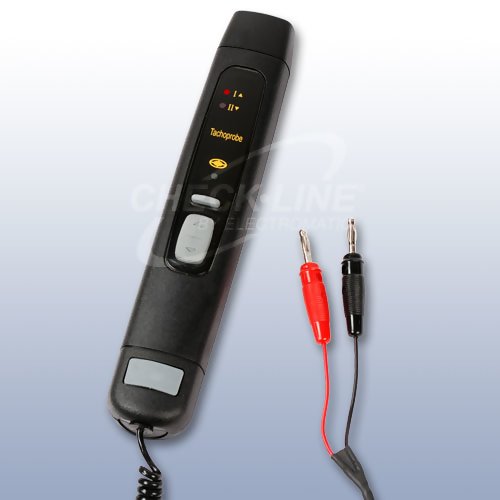

Photo Gallery for the A2108 Handheld Tachometer - click pictures to enlarge

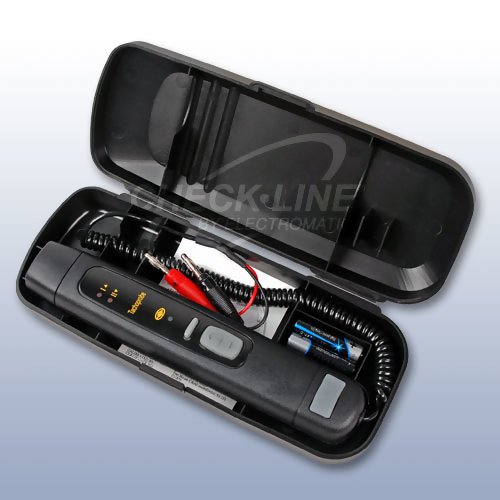

Complete Kit of the A2108 Handheld Tachometer

The A2108 comes supplied in a custom carrying case with AAA Batteries, Instruction Manual, Calibration certificate & reflective tape.
Specifications of the A2108 Handheld Tachometer

Speed Ranges
Range 1
Range 2
100 - 6000 RPM
1000 - 60,000 RPM
Resolution+/- 1.5mV
Accuracy+/- 0.5%
Optical Range50 - 1000mm
Optical angle+/- 45 deg.
Light SourceRed LED
Optical Angle+/- 45 Degrees
Carry CaseIncluded
Contact AdapterOptional
Voltage Output-6 vdc Both Ranges

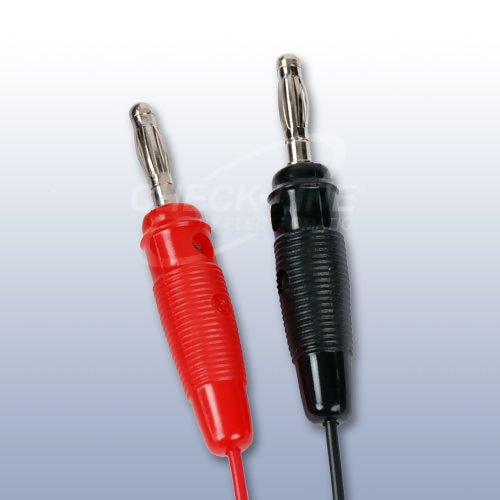

ConnectionsCoiled cable with 2 x 4mm plugs fitted

Buy Now

Please select the items you would like to purchase then click "Add to Cart"
Products:

A2108 Tachometer with Analog Output - Model




Accessories:
Accessories for Handheld Tachometers:



  • Manufactured by: Compact
