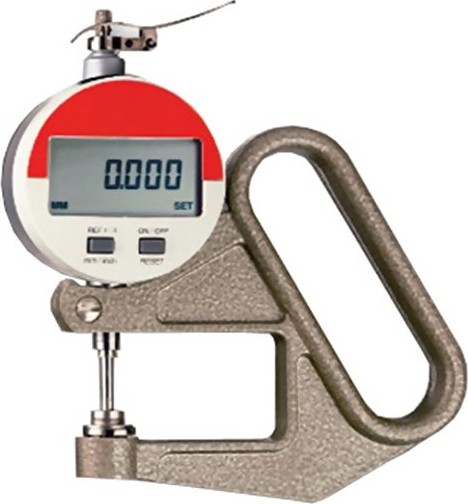

500-FD Digital Thickness Gauge

Price: $695.00
High Resolution Digital Thickness Gauge
Resolution: 0.0001 inch / 0.001 mm
2" (50 mm) Jaw Depth

500-FD Digital Thickness Gauge


Measuring Range: 0 - 10 mm / 0 - 0.4 inch
Resolution: 0.001 mm / 0.0001 inch

The digital thickness gauge serie has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches. The 500-FD model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.


line
reddot Features
line
bluedot Operating by lifting device - self closing
bluedot Resolution 0.001 mm (0.0001 inch)
bluedot Easy to read LCD Display
bluedot User selectable units mm and inch
bluedot RS 232 output for data collection
bluedot Dial gauge: Sylvac S 229

line
reddot Feeler Shape
line
To order, please indicate the desired feeler, e.g. 500-JD-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!
Feeler: A

For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge

Feeler: B For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard

Feeler: C

For soft leather, cardboard, paper, foils, etc.

Feeler: D

For hard leather, plywood, fiberboard, etc.

Feeler: E

For sheet metal, etc.


line
reddot Related Products
line
J-CC
Connecting Cable		related

___________________________________________

D-2000
Precision Material Thickness Gauge
related

bluedot Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability

bluedot Switch-selectable measuring units mm / inch

bluedot Optional software for data transfer and analysis - Part No. SW-50


line
reddot Specifications
line
Resolution
0.001 mm / 0.0001 inch
Measuring range
0 - 10 mm / 0.4 inch
Depth of jaw
50 mm
Display
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive (Sylvac)
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Power supply
Battery 3 V Lithium, CR 2032
Temperature range
10 - 45°C
Weight, net
300 g

line
reddot Download
line

manualInstruction Manual Click Here to Download

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

500-FD Digital Thickness Gauge - Model








Accessories:
J-CC RS-232 to 9 Pin Plug Cable - Accessory



  • Manufactured by: Checkline
