Carrier Rope Tension Meter
Measures accurately on ropes of all diameters
Tension ranges of 20, 30 and 50Kg are typical, however many other ranges are available.
136-3P Carrier Rope Tension Meter |
The model 136-3P Tension Meter accurately measures tension on braided carrier ropes used in the paper making process.. even at speeds up to 3000 meters/min. Large, ball-bearing mounted rollers insure the ropes of different diameters run smoothly through the tension meter.
Special overload protection is provided to withstand the repetitive shock each time the splice in the continuous loop passes over the roller.
Tension ranges of 20, 30 and 50Kg are typical, however many other ranges are available. |
 Features
 Measures accurately on ropes of all diameters |
| Easy material threading - rollers all on one side |
| High overload capacity |
|
| Water-resistant design |
| Measurement is quick, easy and SAFE since the operator simply presses the 3 rollers on to the same side of the carrier rope. |
|
Photo Gallery - click any photo to enlarge
Related Products
|
TM-353
Analog Tension Indicator with Built-In Amplifier |
 |
Provides 0-1 VDC analog output for recording purposes |
| |
| ___________________________________________ |
|
D-485
Digital Tension Indicator with Built-In Amplifier |
 |
Automatic zero setting
"Peak" function retains maximum reading on display |
| |
| ___________________________________________ |
|
136-3
Heavy Duty Tension Meter |
 |
Unaffected by changes in material diameter and rigidity
Tension ranges up to 500 Kg (1100 lbs) |
| |

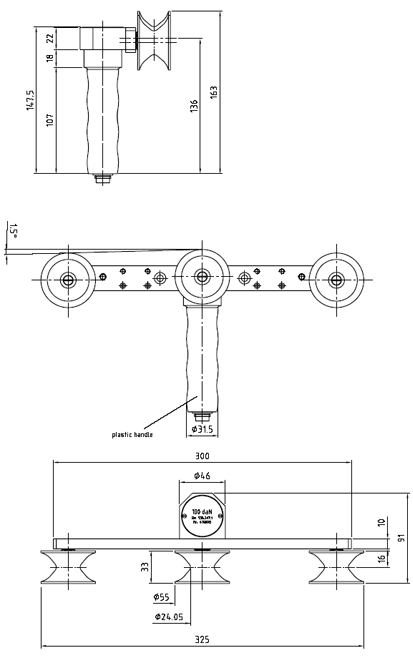

Dimensions
Specifications
| Accuracy |
± 1.5% Full Scale or better |
| Tension Ranges (Kg) |
5, 6, 10, 20, 30, 40, 50, 60, 100, 200, 300 & 500 Kg |
| Outer Roller Spacing (c:c) |
200, 300, 400 or 500 mm |
| Material Deflection |
1.5 degrees |
| Guide Rollers |
30 mm Dia., V-grooved |
| Roller Material |
Aluminum / Steel |
| Overload Protection |
200% + |
| Pricing |
Please Call Us for Pricing 718-846-6458 |
Download
Ordering Guide
| 1 |
1363-200LB300ZS |
Hand-held Tension Sensor (0-200lbs),
with splash proof protection |
| |
| 2 |
D-485-SP |
Digital Tension Indicator (0-200lbs).
Calibrated to display lbs or other units. |
| |
| 3 |
136-3-CC |

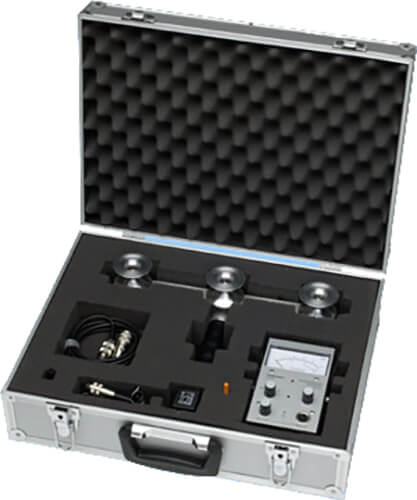

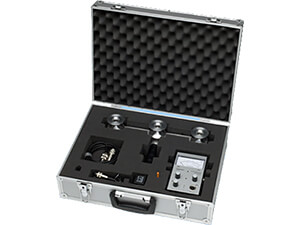

 Aluminum Carrying Case for Tension Sensor, Indicator & Cables. Includes fitted foam inserts with lockable latches & handle. |
|
|
|
