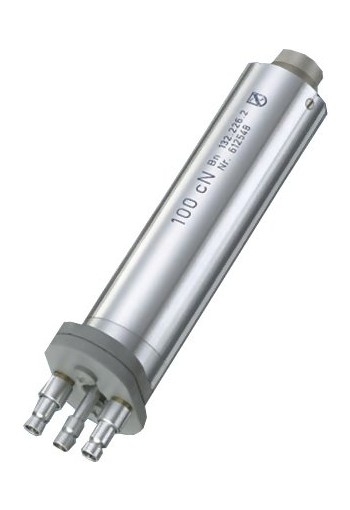

132 Precision Tension Meter


Call for Price

Precision Tension Meter
7 up to 300 g
Precision Tension Meter

The 132 series tension meters are equipped with easy-turning guides, running on ball bearings, were developed especially to measure tensile forces in fine, sensitive and elastic materials
line
reddot Features
line
bluedot For measuring sensitive and elastic yarns, rubber threads, healds, hollow fibers, fine wires and magnetic tapes
bluedot very small deflection angle of 15°
bluedot minimum parasitic influences on the product being measured
bluedot reproducible measuring results even when dealing with difficult products such as elastic strands and rubber thread
bluedot for speeds up to 1200 m/min

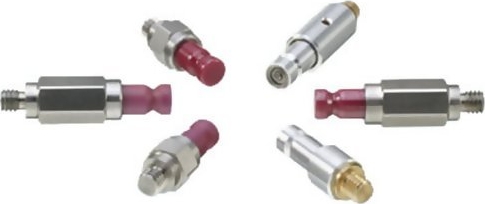

bluedot 3 ball-bearing aluminium rollers with V-groove, root diameter 2mm
bluedot minimum deflection of the product being measured
line

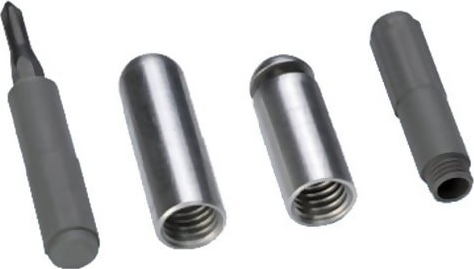

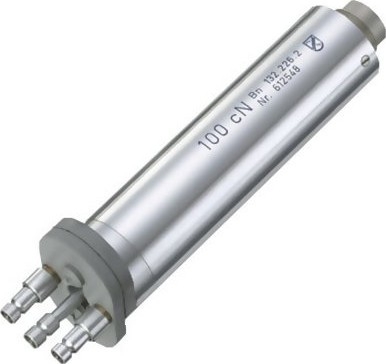

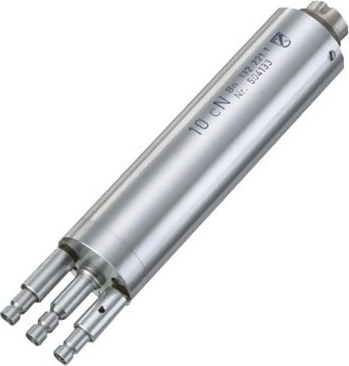

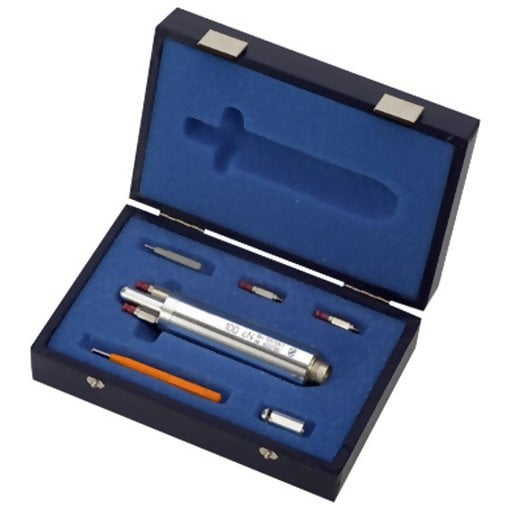

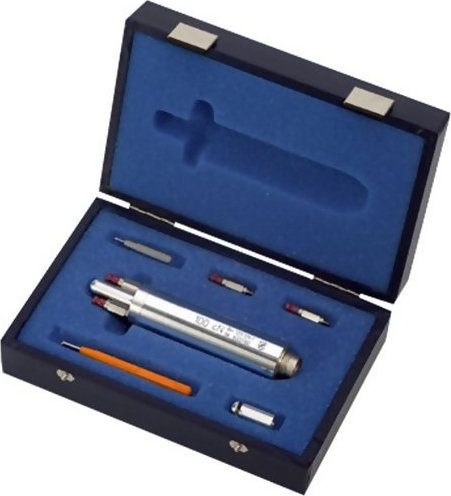

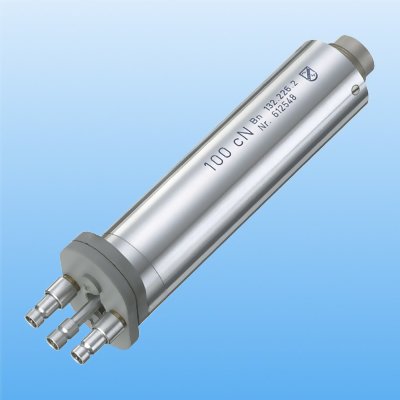

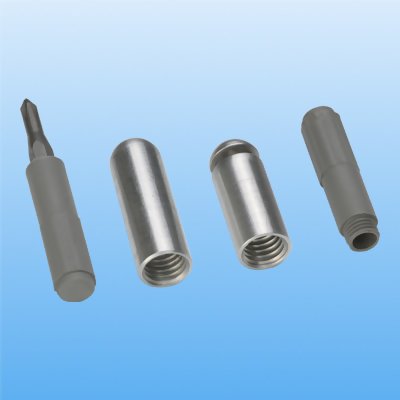

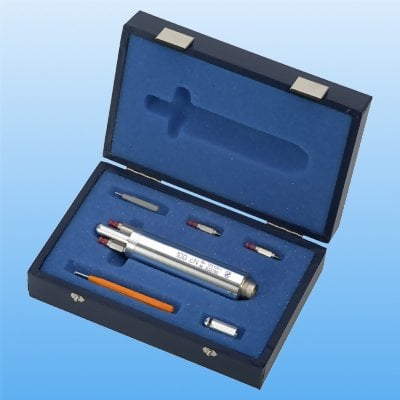

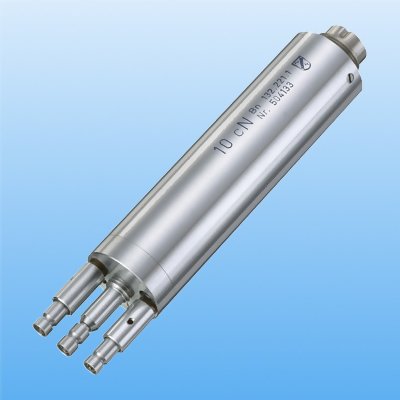

reddot Photo Gallery - click any photo to enlarge
line

line
reddot Tension Ranges
line
Model Range
132-10 0 - 10g
132-20 0 - 20g
132-30 0 - 30g
132-50 0 - 50g
132-100 0 - 100g
132-200 0 - 200g
132-300 0 - 300g

line

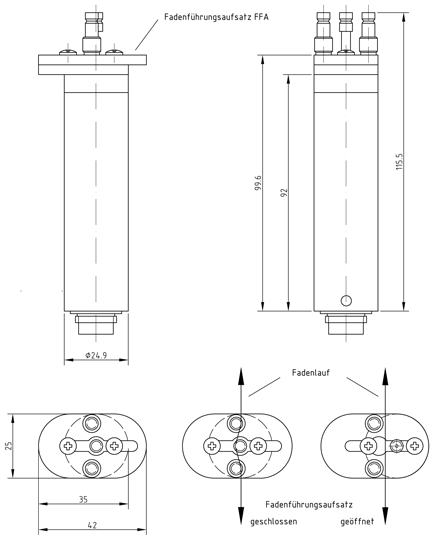

reddot Dimensions
line dimensions
line

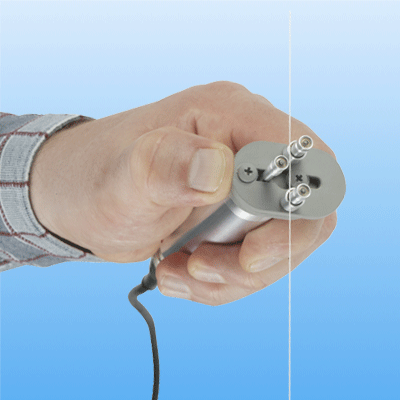

reddot Material Threading Animation
line
line
reddot Related Products
line

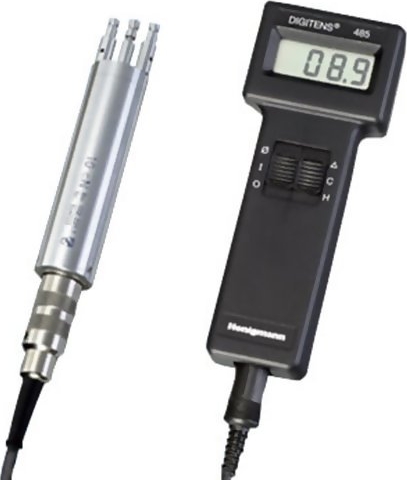

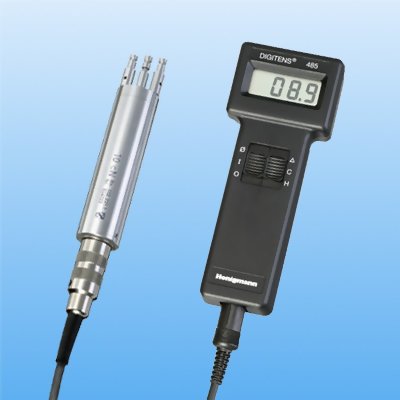

D-485
Digital Tension Indicator with Built-In Amplifier		 related

bluedot Automatic zero setting

bluedot "Peak" function retains maximum reading on display
___________________________________________

TM-353
Analog Tension Indicator with Built-In Amplifier		 related

bluedot  Provides 0-1 VDC analog output for recording purposes
___________________________________________

HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors		 related

bluedot Real time display of measured values graphically and digitally, indicating the actual value in tension units

bluedot Export data in ASCII format
line
reddot Download
line
manual  PDF Dimensional Drawing  Click Here to Download
